WASTE MANAGEMENT EQUIMENT

Phone: +86-13813931455(whatsapp/wechat)Website: http://www.hiclover.com/  Email: [email protected]: [email protected]   Nanjing Clover Medical Technology Co.,Ltd. HICLOVER Incinerator/Parts Range Main Feature Medical Waste Incinerators HICLOVER 10-500kgs/Hr.Double Combustion Chambers Single Combustion Chamber Small, Cheap,10-20kgs/Hr. Three Combustion Chambers(Optional) 3 Chambers for high risk waste Pet Cremation Equipment For Pet(small/big) Cremation Business Animal Incineration Equipment For…

Phone: +86-13813931455(whatsapp/wechat)
Website: http://www.hiclover.com/

Nanjing Clover Medical Technology Co.,Ltd.

HICLOVER Incinerator/Parts Range

Main Feature

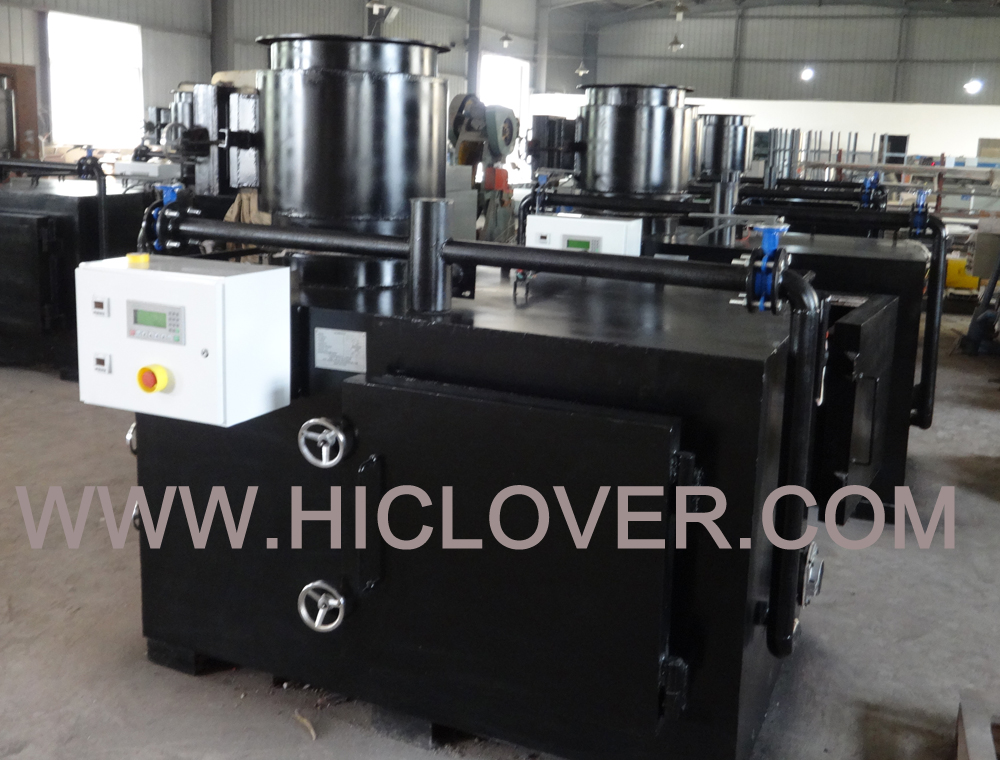

Medical Waste Incinerators

HICLOVER 10-500kgs/Hr.Double Combustion Chambers

Single Combustion Chamber

Small, Cheap,10-20kgs/Hr.

Three Combustion Chambers(Optional)

3 Chambers for high risk waste

Pet Cremation Equipment

For Pet(small/big) Cremation Business

Animal Incineration Equipment

For other animal incineration


Items/Model

TS100(PLC)

TS150(PLC)

TS300(PLC)

TS500(PLC)

Burn Rate (Average)

100 kg/hour

150 kg/hour

300 kg/hour

500 kg/hour

Control Mode

PLC Auto.

PLC Auto.

PLC Auto.

PLC Auto.

Combustion Chamber

1200L

1500L

2000L

3000L

Internal Dimensions

120x100x100cm

150x100x100cm

170x120x100cm

210x120x120cm

Secondary Chamber

600L

750L

1000L

1500L

Smoke Filter Chamber

Dry Scrubber

Dry Scrubber

Dry Scrubber

Dry Scrubber

Feed Mode

Manual

Manual

Manual

Manual

Voltage

220V

220V

220V

220V

Power

1.38Kw

1.69Kw

2.57Kw

4.88Kw

Diesel Oil Consumption (kg/hour)

Ave.20.4

Ave.24.2

Ave.33

Ave.44

Natural Gas Consumption (m3n/hour)

Ave.24.5

Ave.29

Ave.39.6

Ave.52.8

Temperature Monitor

Yes

Yes

Yes

Yes

Temperature Protection

Yes

Yes

Yes

Yes

Oil Tank

200L

300L

500L

500L

Chimney

10Meter

10Meter

14Meter

14Meter

Chimney Type

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

1st. Chamber Temperature

800℃–1000℃

800℃–1000℃

800℃–1000℃

800℃–1000℃

2nd. Chamber Temperature

1000℃-1200℃

1000℃-1200℃

1000℃-1200℃

1000℃-1200℃

Residency Time

2.0 Sec.

2.0 Sec.

2.0 Sec.

2.0 Sec.

Gross Weight

6000kg

8500kg

11000kg

16000kg

External Dimensions

260x150x180cm

300x160x190cm

400x210x300cm

450x210x300cm



www.hiclover.com
********************************************************************************************************

HICLOVER Solution for Fighting COVID-19, with CE Certification Pass.

1. Medical Waste Incinerator(Containerized Mobile Incinerator｜Top Loading Incinerator)

2. Auto Roll Air Filter for Clean Room



2020-10-28



Medical Environmental ｜Waste Incinerators ｜Auto Roll Air Filters

Medical Waste Incinerator ｜Mobile Incinerator｜
Pet Animal Incinerator｜Municipal Solid Waste  Incinerator

Approximate nominal capacity per day: 150±50 liters per day
• Vessel volume capacity: 3±1.5m3
• Service up to: 500 people (maximum)
• Approximate maximum dimensions (L x W x H): 8m length x 2.5m wide x 2.5m height
• Charging hopper minimum dimensions (L x W): 600mm x 500mm
• Raw waste density: up to 0.65.
• Raw waste moisture: up to 0.65.
• Mixed waste C/N: 25 to 40. Bidder to define the final capability to reach the required C/N and humidity conditions during commissioning of the equipment.
• Loading devices and automatic loading for maturing plant for final maturation of compost to avoid interference by operators.
• Operational time per day: 30 (minimum) to 120 minutes (maximum)
• Power rating: 10KW (minimum)
• Power consumption in KWh: 8
Approx. weight of waste per day
600kg
600kg
1000Kg
1500Kg
Number of people
Up to 150
Up to 200
Up to 500
Up to 1000
Quantity required
9
5
4
2
Combustion chamber volume
0.4 – 0.7m3
0.7 – 1m3
1.3 – 1.5m3
1.8 – 2.5m3
Average fuel consumption
12 – 16kg/hr
12 – 16kg/hr
15 – 20 kg/hr
25 – 30 kg/hr
Operational temperature
850 – 1400°C
850 – 1400°C
850 – 1400°C
850 – 1400°C
Gas retention in secondary chamber
2 secs
2 secs
2 secs
2 secs
Provision for temperature monitoring
Yes
Yes
Yes
Yes
Average ash residue
3%
3%
3%
3%
Provision of thermostatic device
Yes
Yes
Yes
Yes
Top loading method
Yes
Yes
Yes
Yes
Refactory thickness
180 – 200mm
180 – 200mm
180 – 200mm
180 – 200mm
Fuel type
Diesel
Diesel
Diesel
Diesel
Afterburn Complies with EU Legislation or its equivalent
Yes
Yes
Yes
Yes
CE Certified
Yes
Yes
Yes
Yes
External length 1 – 1.5m 1.4 – 2m 2.2m – 2.8m 2.8 – 3.5m
External width
0.5 – 1m
0.8 – 1.3m
1m – 1.2m
1.1 – 1.5m
External height 4 – 4.6m 4 – 4.6m 4m – 4.2m 4.2 – 4.6m
Shipping weight should not be more than
1.5tons
2.5tons
4 tons
7 tons
EMISION STANDARD:
The average emissions in the secondary chamber shall comply with EU standards or its equivalent. The minimum parameters to comply with at 30 minutes average measurement are provided as: Total dust (30 mg/m3); Sulphur dioxide (200 mg/m3); Nitrogen dioxide (400 mg/m3); Carbon monoxide (100 mg/m3).
